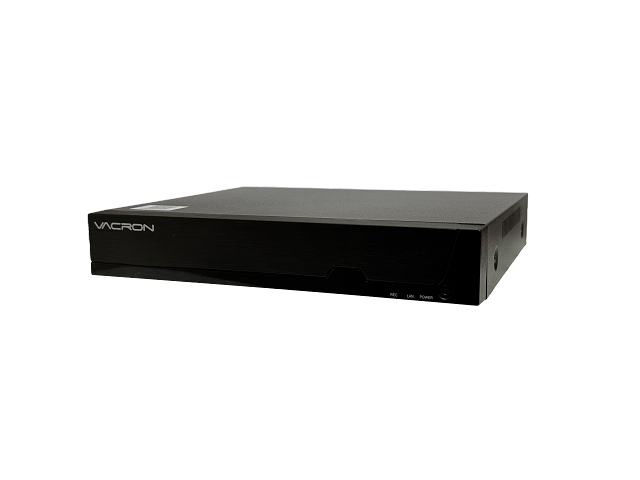

VDN-DKZ604D

  • Item：H.265 4CH DVR
  • Spec.：5MP/1080P/720P/960H
Features
  • Pentaplex Operation: which can Record / Playback / Remote Connection /mobile phone watch.
  • Hard Drive support 8TB.
  • Support HD super high quality output.
  • Remote IE browsing, with video monitoring and playback functions.
  • Support HTTP、 DHCP、 DDNS、 NTP、 SMTP、 FTP、 DNS、 UPNP、 PPPoE、 IP search and other
    network protocol.
  • Support iPhone and Android for live monitoring and playback.
    CMS support for Effectively integrate device management operations.
  • Various modes supported , both analog & digital IP signal can be connected to DVR as
    hybrid features.
  • With P2P function, APP can scan QR-Code for real-time monitoring and playback,
    increasing information security.
  • Set the IPCAM mode on the host, and use FUHO IPCAM to plug and play.
  • Support WIFI network.
  • Support automatic update.
  • Support AHD, TVI, CVI, CVBS, IP signal input.
    Inquiry
    Inquiry List
    Includes
    • Power Supply x1
    • Manual x1
    • Mouse x1
    Specifications
    Model
    HVR-AV604-H1
    Video Input
    4 groups of BNC(1Vp-p 75Ω)
    Video Output
    VGA Resolution
    High Definition(HD)
    CVBS
    Audio Input
    1CH Input
    Audio Output
    1CH Output
    Audio Compression
    G.711U
    Display Resolution
    1080P
    Digital Zoom
    Yes
    Platform
    5 seconds automatic platform jump
    Video Compression
    H.265
    Recording Frame
    4CH 5M @6fps/CH
    4CH 1080P @15fps/CH
    Recording Mode
    Continuous / Schedule / Motion
    Motion Detection
    Zones: 192(16×12 grid)
    Display Mode
    Single, Quad, Sequence
    File Format
    MP4/Custom Format
    Media Interface
    USB/Network
    Playback
    Yes
    Network Protocol
    HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、UPNP、PPPoE、IP Authority、IP Search
    Browser
    IE
    Storage HDD Interface
    SATA
    Maximum Support Capacity
    Maximum 8TB HDD
    Internal HDD
    1 pcs
    External storage
    Support real-time synchronous recording of USB storage devices
    File System
    stable and reliable self-developed file system
    S.M.A.R.T
    HDD error detecting
    Menu Display
    GUI interface；VGA & HD out& CVBS simultaneously
    Input Method
    Mouse
    Network Ethernet
    1*RJ-45, 10/100 Base-T
    Web Monitoring
    Live, Search/Playback, Backup, Remote setup, Upgrade
    Daylight Saving Time(DST)
    Yes
    Multi-lingual
    Yes,(more than 20 languages)
    Firmware Update
    USB and Network Remote Upgrade
    Network Time Protocol
    Yes
    4G Mobile Phone Monitoring
    iPhone, Android, Mobile App supports Live video& audio,and playback.
    Central Management Software(CMS)
    Support
    Hybrid(Digital & Analogue)
    Support
    Operating Environment
    Celsius 0 ~ 50°C, humidity 10~90%
    Power Supply
    DC 12V / 3A(AC100V~240V 50/60HZ)
    Net Weight
    About 0.5kg (without HDD and Power Adapter)
    Dimension
    255mm x 216mm x 42mm (L x W x H)
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
